【Powerful Cutting】 Adopts compressed double beam technology, more powerful, finer laser beam, longer (50mm) laser focal length, max engraving speed is 10000 mm/min, and the maximum cutting thickness can be up 30mm, 8 -10mm thickness plywood could be cutted by one pass.

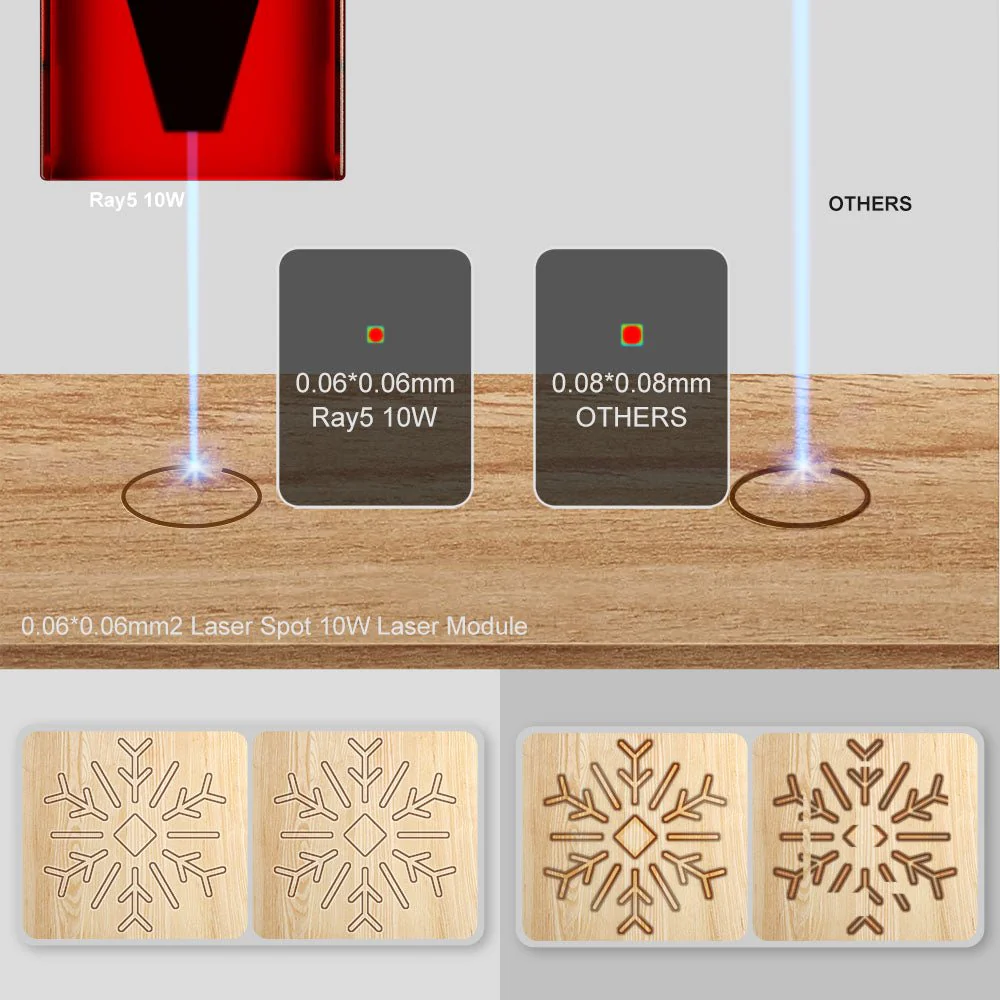

【Precision Engraving】0.06mm² ultra-fine laser spot, two times thinner than ordinary lasers, making RAY5's cutting & engraving more precise and fewer burn marks.

【1000+ Materials for DIY】Support engraving materials: All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal. Support cutting materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

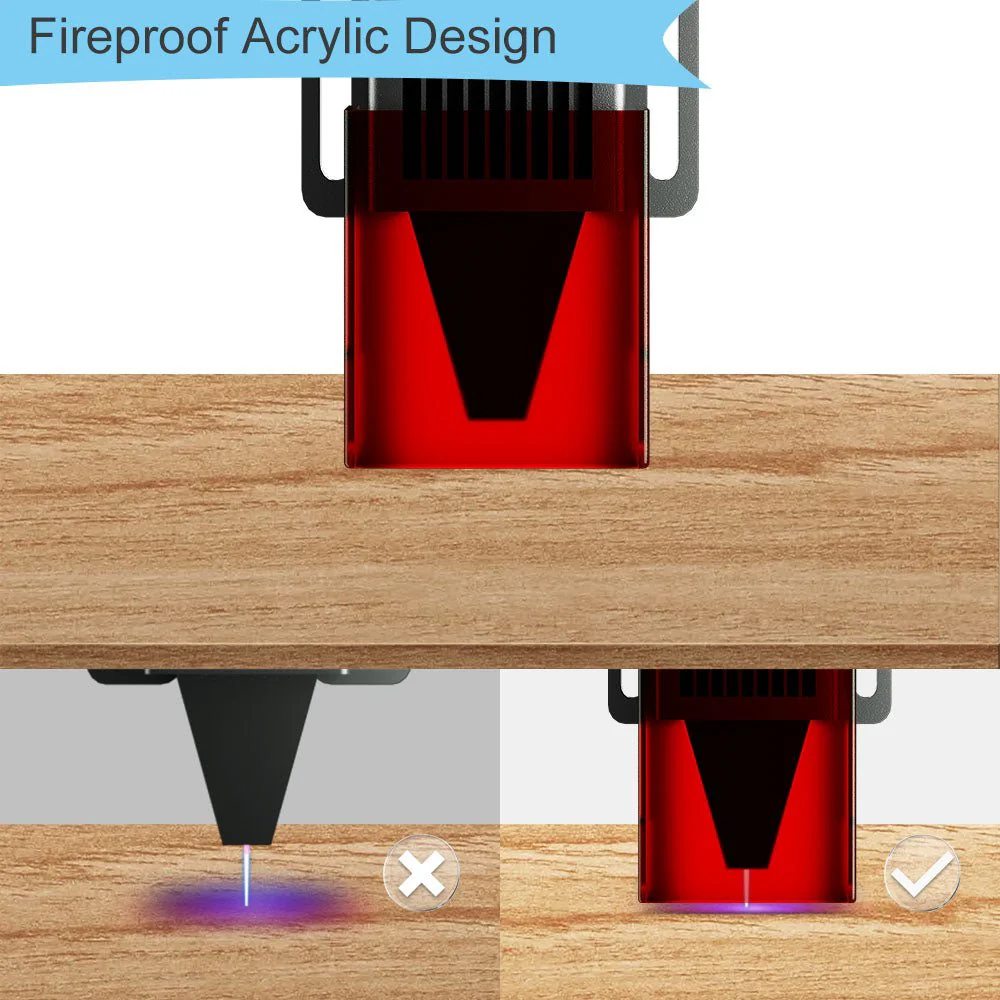

【Eye Protection】Equipped with the latest panoramic filter glass protective cover, which plays a good role in protecting the eyes, filtering 97% of ultraviolet rays, no need to wear additional protective glasses.  And the service life of the laser is about 20,000 hours.

【Wide Application Scene】Below is a list of some of the most popular laser engraving ideas: Company logos, Signage, Christmas ornaments, Spice jars, QR codes and barcodes for clients, Photo engraving, Personalized products, Business cards, Wine glasses, Key chains, Customized jewelry, Theme toy boxes, Coasters, Artwork, celebration and special occasion gifts, Custom metal cups.

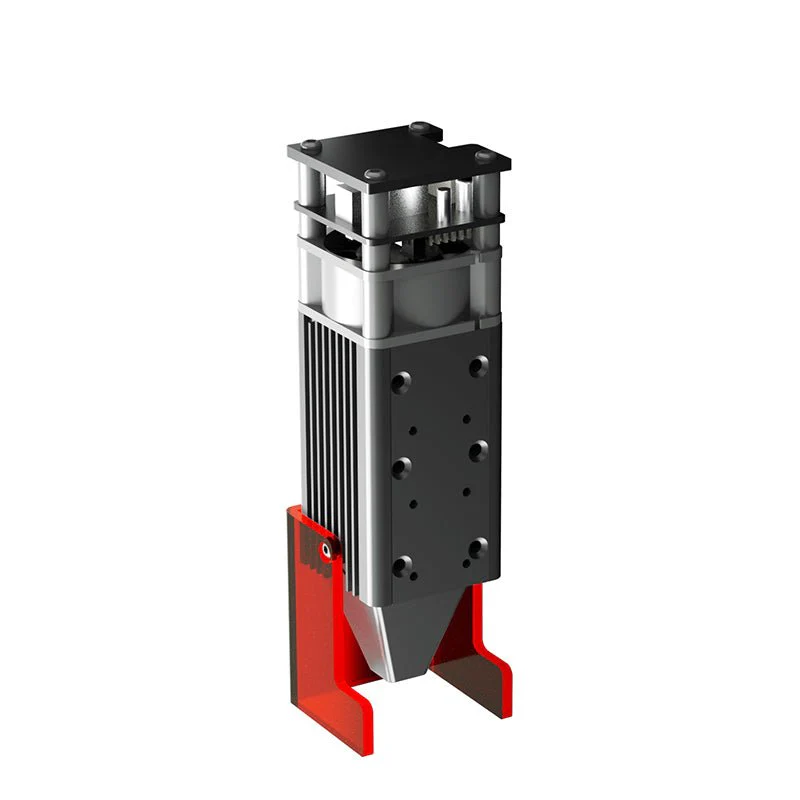

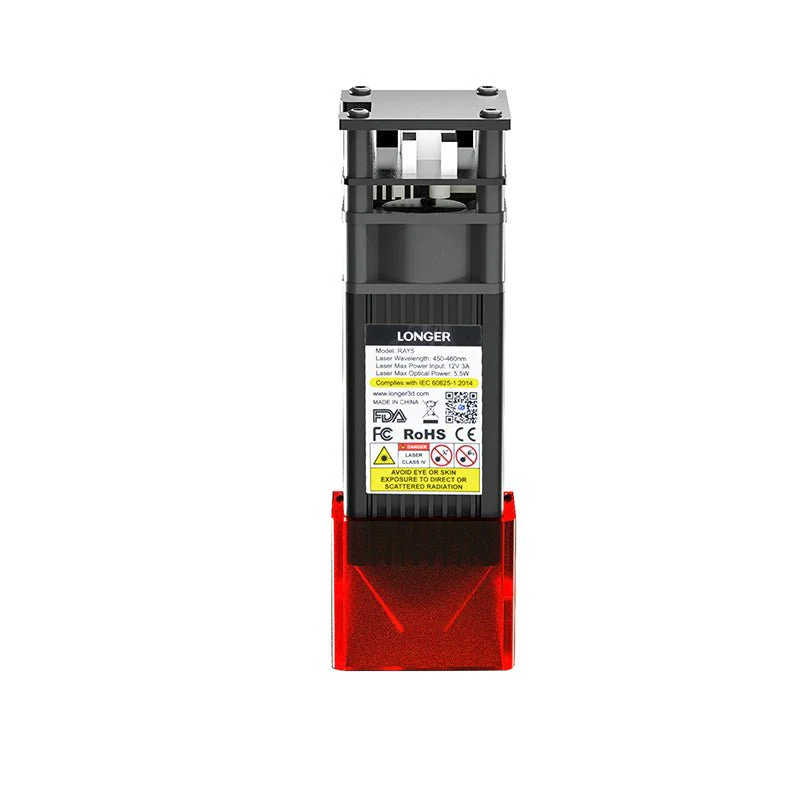

Model: LC40F50
Laser Technology: Compressed Double Beam Technology
Wavelength: 450 - 460 nm
Max Power Input: 12 V 3.2 A
Optical Power Output: 10 - 11 W
Focus Type Fixed Focus: 50mm Focal length
Ultra-fine Laser Spot: 0.06*0.06mm²
Laser Class: FDA Class IV, or Class 4 IEC standard
Applicable Material:
1. Engraving: Plywood, Basswood, Hardwood, Pinewood, Acrylic, Kraft paper, Stainless steel, Aluminum alloy, Ceramics, etc.
2. Cutting: 10mm Basswood, 14mm Pinewood,6mm Acrylic, 4mm Bamboo, Kraft paper, etc.
Working Temperature: 0℃~70℃
Net weight:285g
Package Size: 230*100*125mm
Package Weight: 435g
Packing List: 1x 10W laser module; 1x focusing column
